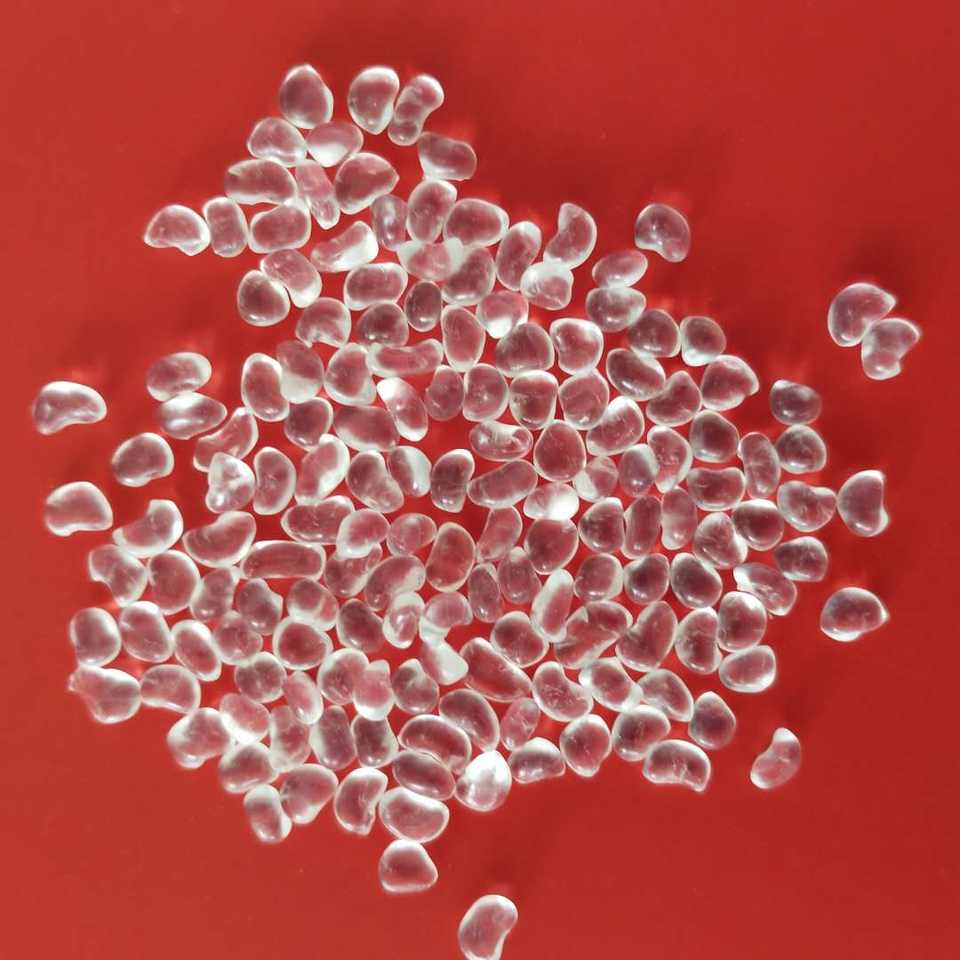

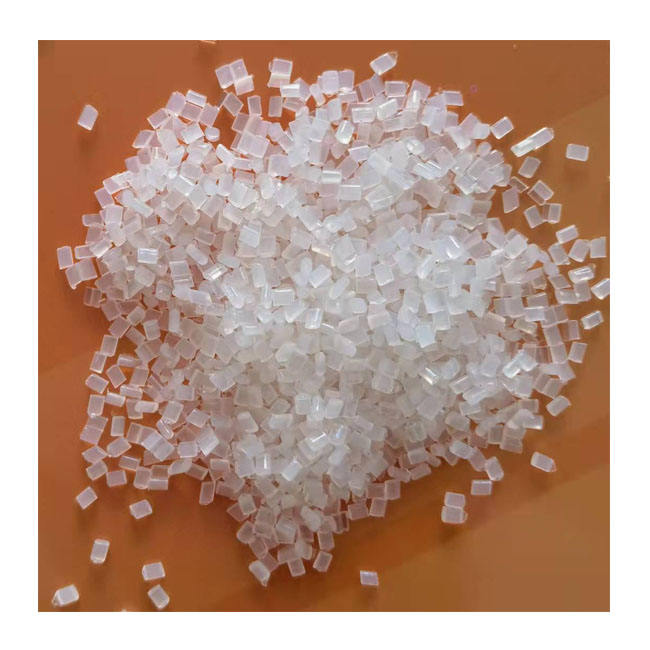

EVOH Plastic Raw Material

Short Description:


Product Detail

SEND MESSAGE

Application

1.Product Description:

Ethylene-vinyl alcohol copolymer (EVOH): Combining the processability of ethylene polymer with the barrier effect of ethylene alcohol polymer, ethylene-vinyl alcohol copolymer not only shows excellent processing performance, but also shows excellent blocking effect on gas, odor, fragrance, solvent, etc.Due to its thermal stability in combination with ethylene, multilayer containers containing EVOH barrier layers are completely reusable.It is these features that enable plastic containers containing EVOH barrier layers to replace many glass and metal containers in food packaging.

PA / EVOH / PE film is a kind of multilayer coextrusion film with high barrier performance. It is widely used in the packaging of food, chemical industry, medicine, tobacco and other products. It can also be compounded with other materials. The product has a wide range of uses. Our 11 layer coextrusion blown film advanced equipment and many years of production experience bring the advantages of PA / EVOH / PE film into full play. Our company can produce PA / EVOH / PE coextrusion film with the thinnest thickness of 20 microns and superior product performance.


2.Product Parameters
Technical Data Sheet
EVAL™ F171B
32 mol% Ethylene-Vinyl Alcohol Copolymer
Typical Properties Unit Test Method Metric/(English)
MFR g/10min ISO1133 (190°C) 1.6
Density 103 kg/m3 ISO1183-3 1.19
Thermal Properties Unit Test Method Metric/(English)
Melting Temperature °C (°F) ISO 11357 183 (361)
Crystalization Temperature °C (°F) ISO 11357 158 (316)
Glass Transition Point °C (°F) ISO 11357 60 (140)
Vicat Softening Point °C (°F) ISO 306 172 (342)
Mechanical Properties Unit Test Method Metric/(English)
Tensile stress at break MPa (psi) ISO 527 34 (4,900)
Elongation at break % ISO 527 14
Young's Modulus GPa (psi) ISO 527 4.5 (650,000)
Flexural Modulus GPa (psi) ISO 178 4.3 (620,000)
Charpy Impact Strength kJ/m2 (ft.lbf/in2) ISO 179-1 7 (3.3)
Rockwell Hardness HRM ISO 2039-2 92
Barrier Properties (cast film) Unit Test Method Metric/(English)
Oxygen Transmission Rate cm3.20μm/m2.day.atm ISO 14663-2 Annex C 0.3 (0.015)

3.Company Profile
Hebei Chijiang Import and Export Co., LTDstarting from 2010,  is constantly engaged in the production of plastic raw materials products,which is located in Handan City, Hebei Province, China, covering 500 acres, having more than 350 employees. The main products are carbon black ,masterbatch, modified(pvc, PP, pa6, pa66, pbt, abs),Filler masterbatch,fireretardant,antioxidant,flexibilizer,plasticizer, and other plastic raw material(ldpe hdpe lldpe pvc pva pbt eva abs eps gpps hips pc pet etc.  With years of hard work and development, we have achieved a certain scale with technical service team for users with high quality and professional service.

4.Packaging & Shipping

1.Packing:
Water-Proof Paper Plastic Bag
20mt/20'FCL
2.Storage:
The resin should be stored in a drafty, dry warehouse and away from fire and direct sunlight. It should not be piled up in the open air.
3.Transportation:

During transportation, the product should not be exposed to strong sunlight or rain and should not be transported together with sand, soil, scrap metal, coal or glass. Transportation together with toxic, corrosive and flammable substance is strictly prohibited.

Quality:
And we are the manufactory, so you don’t need to doubt the quality.
Payment method: for example T/T, D/A, L/C, Westerm Union,other
1)We will ship the goods within 5days after get your payments.If you want to cancel or change order, please tell me within 24hours after you finish the payment…So we both can make the best of the bad bargain.
2)We will ship the goods that you order from us by HKEMS, DHL, UPS, TNT and EUB.We will decided to choose which courier depend on different countries.To find the best way to delivery the goods for you.
3)As usual you can get the goods with in 4-7days.If the goods were lost or not received for other reasons, please contact us immediately.
